Side Entry Single Level Modular Jacks |
|
|
|
|
Modular jack, side entry, single level, very low profile, unshielded & shielded, surface mount
|
|
|
|
|
|
MATERIAL
|
|
|
HOUSING:
|
HIGH TEMP. THERMOPLASTIC, UL 94V-0
|
|
SHIELD:
|
BRASS, NICKEL PLATED
|
|
CONTACTS:
|
PHOSPHOR BRONZE, GOLD PLATED OVER NICKEL IN CONTACT AREA, TIN PLATED OVER NICKEL IN SOLDER AREA
|
|
|
|
|
|
# of positions
|

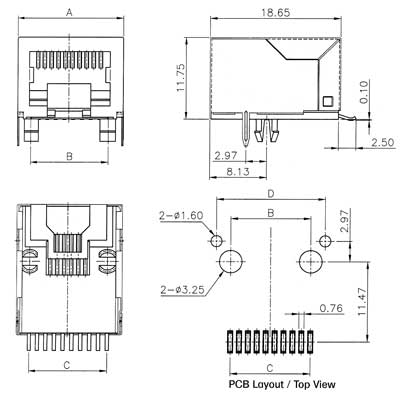

Dimensions (mm)
|
|
A
|
B
|
C
|
D
|
|
6
|
13.56
|
10.16
|
6.35
|
13.57
|
|
8
|
15.74
|
11.43
|
8.89
|
15.54
|
|
10
|
15.74
|
11.43
|
11.43
|
15.54
|
|
|
|
|
|
|
|
Selection explanation:
|
|
Shielding option:
|
S - shielded
N - unshielded
|
|
Key option:
|
1 - with key
2 - without key
|
|
Contact plating:
|
0 - gold flash
1 - 6 microinch gold plated
2 - 15 microinch gold plated
3 - 30 microinch gold plated
4 - 50 microinch gold plated
|
|
|
|
|
|
|
