Side Entry Single Level Modular Jacks |
|
|
|
|

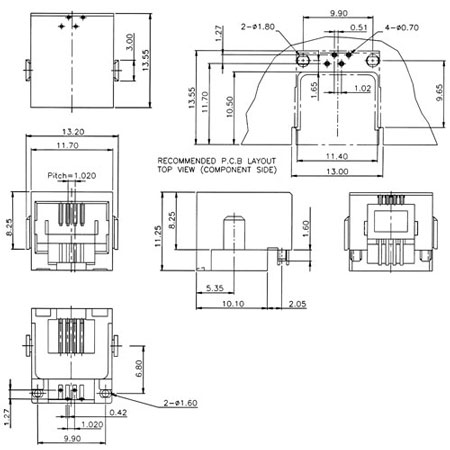

Modular jack, side entry, single level, 4 or 6 pos., 2 ~ 6 contacts, embedded, unshielded, PCB
|
|
|
|
|
|
MATERIAL
|
|
|
HOUSING:
|
HIGH TEMPERATURE THERMOPLASTIC, UL 94V-0
|
|
CONTACTS:
|
PHOSPHOR BRONZE, GOLD PLATED OVER NICKEL IN CONTACT AREA, TIN PLATED OVER NICKEL IN SOLDER AREA
|
|
|
|
|
|
|
|
|
Selection explanation:
|
|
Contact plating:
|
0 - gold flash
1 - 6 microinch gold plated
2 - 15 microinch gold plated
3 - 30 microinch gold plated
4 - 50 microinch gold plated
|
|
|
|
|
|
|
