Side Entry Single Level Modular Jacks |
|
|
|
|
Modular jack, side entry, single level, mini low profile, up latch, unshielded, PCB
|
|
|
|
|
|
MATERIAL
|
|
|
HOUSING:
|
HIGH TEMP. THERMOPLASTIC, UL 94V-0
|
|
CONTACTS:
|
PHOSPHOR BRONZE, GOLD PLATED OVER NICKEL IN CONTACT AREA, TIN PLATED OVER NICKEL IN SOLDER AREA
|
|
|
|
|
|
# of positions
|

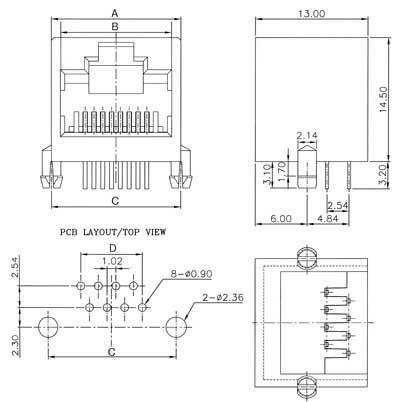

Dimensions (mm)
|
|
A
|
B
|
C
|
D
|
|
4
|
12.20
|
7.82
|
12.00
|
3.06
|
|
6
|
12.20
|
9.90
|
12.00
|
5.10
|
|
8
|
15.00
|
11.90
|
15.00
|
7.14
|
|
10
|
15.00
|
11.90
|
15.00
|
9.18
|
|
|
|
|
|
|
|
Selection explanation:
|
|
Flange option:
|
F - flanged
L - flangeless
|
|
Key option:
|
1 - with key
2 - without key
|
|
Contact plating:
|
0 - gold flash
1 - 6 microinch gold plated
2 - 15 microinch gold plated
3 - 30 microinch gold plated
4 - 50 microinch gold plated
|
|
|
|
|
|
|
