Side Entry Single Level Modular Jacks |
|
|
|
|
Modular jack, side entry, single level, 2 ~ 12 ports, 8 or 10 pos., unshielded, flat or round pins, PCB
|
|
|
|
|
|
MATERIAL
|
|
|
HOUSING:
|
ENGINEERING THERMOPLASTIC, UL 94V-0
|
|
CONTACTS:
|
PHOSPHOR BRONZE, GOLD PLATED OVER NICKEL IN CONTACT AREA, TIN PLATED OVER NICKEL IN SOLDER AREA
|
|
|
|
|
|

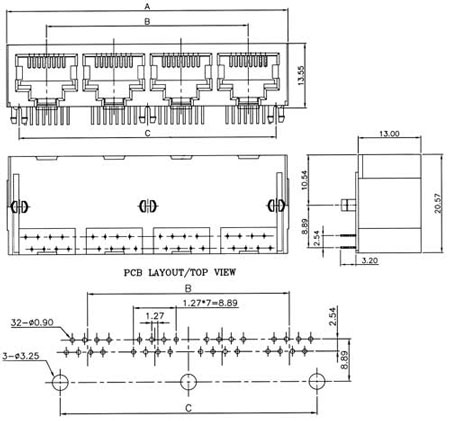

Dimensions (mm)
|
# of ports
|
|
2
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
|
A
|
30.48
|
44.45
|
58.42
|
72.39
|
86.38
|
114.30
|
142.24
|
170.18
|
|
B
|
13.97
|
27.94
|
41.91
|
55.88
|
69.85
|
97.79
|
125.73
|
153.67
|
|
C
|
25.40
|
39.37
|
53.34
|
67.31
|
81.28
|
109.22
|
137.16
|
165.10
|
|
|
|
|
|
|
|
Selection explanation:
|
|
Pins type option:
|
F - flat
R - round
|
|
Contact plating:
|
0 - gold flash
1 - 6 microinch gold plated
2 - 15 microinch gold plated
3 - 30 microinch gold plated
4 - 50 microinch gold plated
|
|
|
|
|
|
|
