Side Entry Single Level Modular Jacks |
|
|
|
|
Modular jack, side entry, single level, 2 & 4 ports, 8 & 10 pos., unshielded, PCB
|
|
|
|
|
|
MATERIAL
|
|
|
HOUSING:
|
ENGINEERING THERMOPLASTIC, UL 94V-0
|
|
CONTACTS:
|
PHOSPHOR BRONZE, GOLD PLATED OVER NICKEL IN CONTACT AREA, TIN PLATED OVER NICKEL IN SOLDER AREA
|
|
|
|
|
|

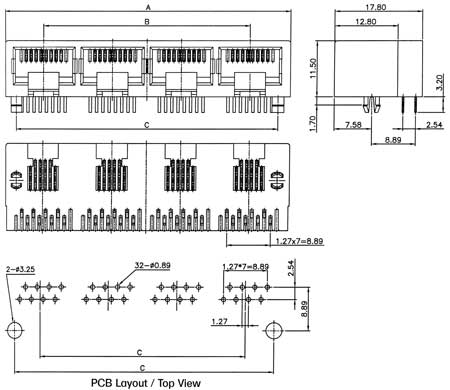

# of ports
|
Dimensions (mm)
|
|
A
|
B
|
C
|
|
2
|
30.38
|
13.97
|
25.40
|
|
4
|
58.32
|
41.91
|
53.34
|
|
|
|
|
|
|
|
Selection explanation:
|
|
Contact plating:
|
0 - gold flash
1 - 6 microinch gold plated
2 - 15 microinch gold plated
3 - 30 microinch gold plated
4 - 50 microinch gold plated
|
|
|
|
|
|
|
