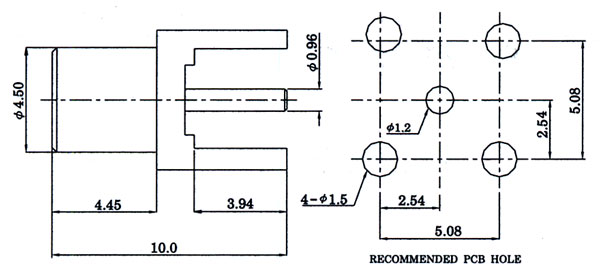

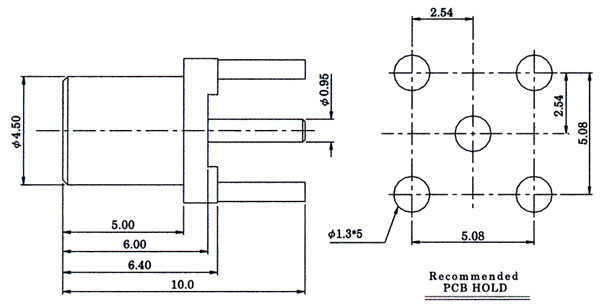

MCX Series

Jack, receptacle, vertical mount

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: BeCu, gold plated

Part number Plating 300/242C1123000 Gold 300/242C1123001 Nickel 300/242C1120030 Gold 300/242C1120031 Nickel

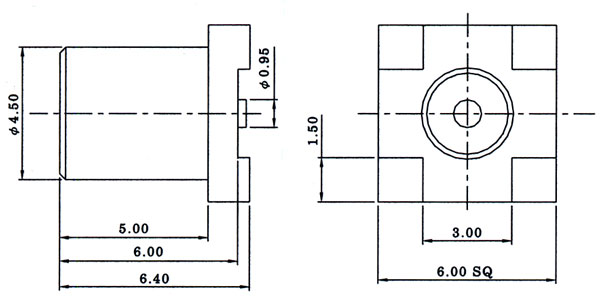

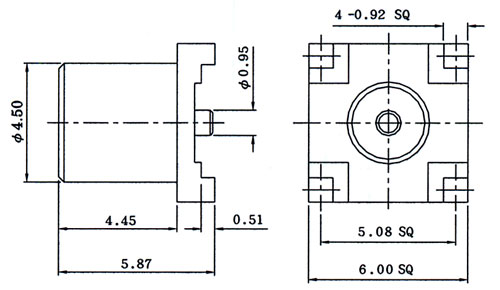

Jack, receptacle, vertical surface
mount

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: BeCu, gold plated

Part number Plating 300/242C1120040 Gold 300/242C1120041 Nickel 300/242C1120050 Gold 300/242C1120051 Nickel

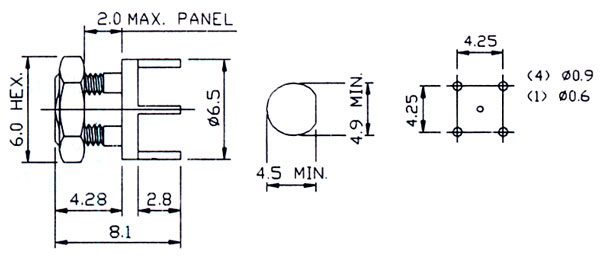

Jack, receptacle, bulkhead, vertical mount

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: BeCu, gold plated

Part number Plating 300/242C1122900 Gold 300/242C1122901 Nickel

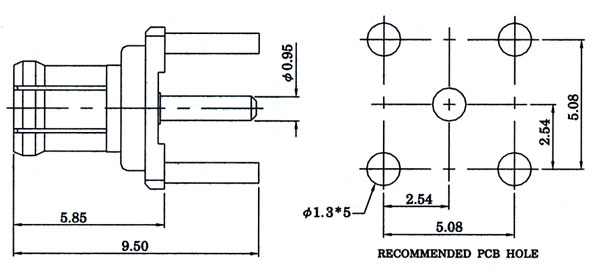

Plug, receptacle, vertical mount

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: BeCu, gold plated

Part number Plating 300/242C1120060 Gold 300/242C1120061 Nickel
