MCX Series

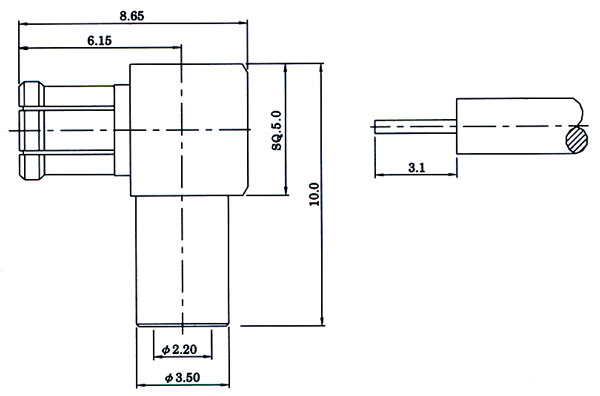

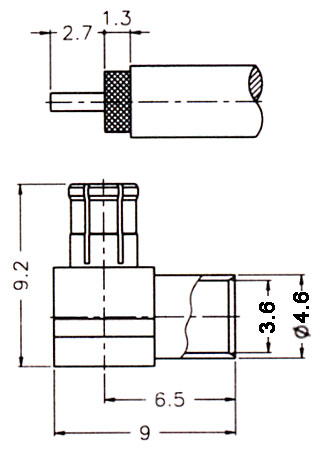

Plug, right angle

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: Brass, gold plated

Part number Cable Plating 300/242C1129100 RG405/ U Gold 300/242C1129101 Nickel 300/242C1129110 RG402/ U Gold 300/242C1129111 Nickel

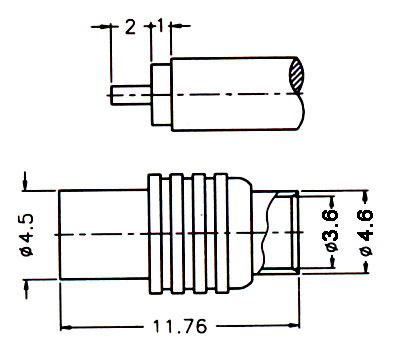

Jack, straight

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: BeCu, gold plated

Part number Cable Plating 300/242C1129200 RG405/ U Gold 300/242C1129201 Nickel 300/242C1129210 RG402/ U Gold 300/242C1129211 Nickel
