MCX Series |
|
|
|
|
Crimp type for flexible cable
|
|
|
|
|

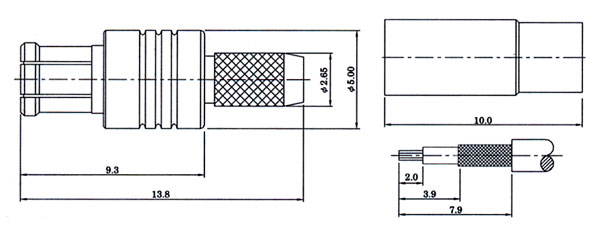

Plug, straight
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: Brass, gold plated
|
|
|
|

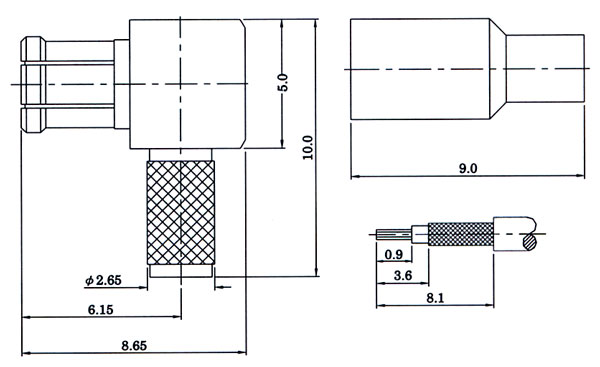

Plug, right angle
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: Brass, gold plated
|
|
|
Part number
|
Cable
|
Dim "A"
|
Plating
|
|
300/242C1122800
|
RG174, 188, 316
|
Ø2.7
|
Gold
|
|
300/242C1122801
|
Nickel
|
|
300/242C1122810
|
RG178, 196
|
Ø2.1 5
|
Gold
|
|
300/242C1122811
|
Nickel
|
|
|
|

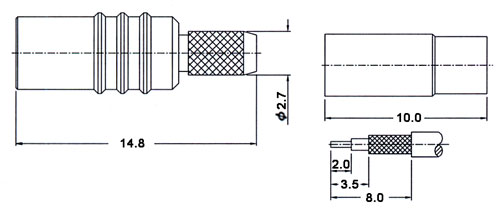

Jack, straight
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: BeCu, gold plated
|
|
|
Part number
|
Cable
|
Plating
|
|
300/242C1122700
|
RG174, 188, 316/U
|
Gold
|
|
300/242C1122701
|
Nickel
|
|
|
|

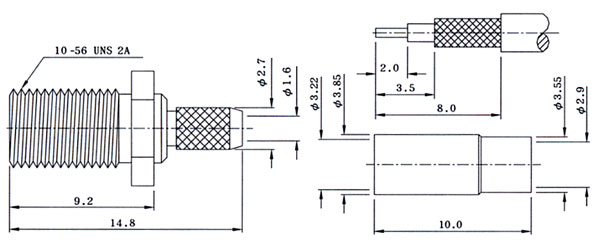

Jack, bulkhead, straight
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: BeCu, gold plated
|
|
|
Part number
|
Cable
|
Plating
|
|
300/242C1129400
|
RG174, 188, 316/U
|
Gold
|
|
300/242C1129401
|
Nickel
|
|
|
|
|
|
|
|
|
