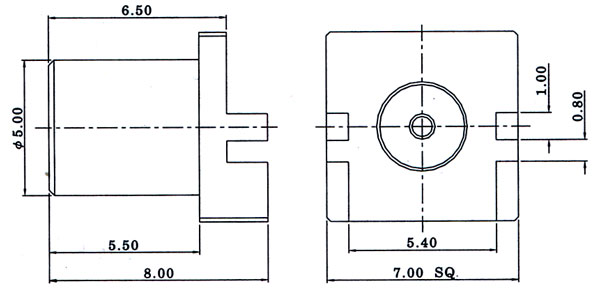

MCX Series

Jack, receptacle, edge mount

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: BeCu, gold plated

Part number Plating 300/242C1120070 Gold 300/242C1120071 Nickel

Jack, receptacle, right angle

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: BeCu, gold plated

Part number Plating 300/242C1129000 Gold 300/242C1129001 Nickel

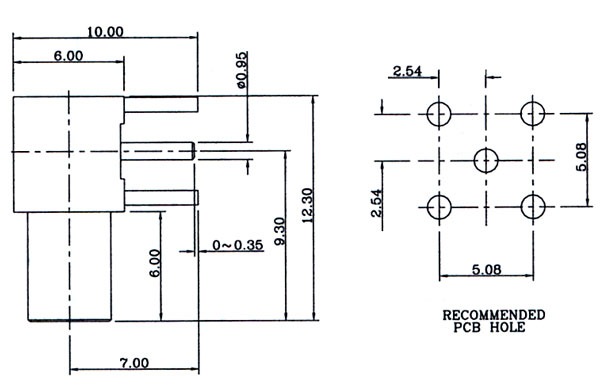

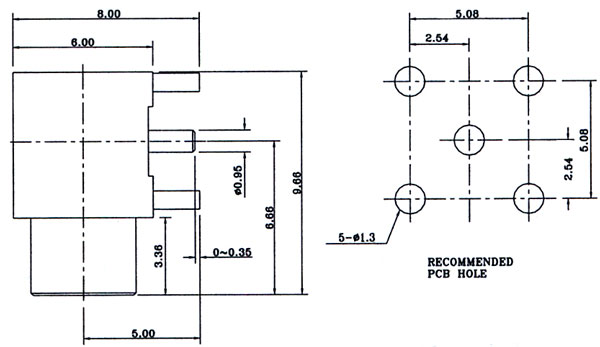

Jack, receptacle,  right angle

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: BeCu, gold plated

Part number Plating 300/242C1120080 Gold 300/242C1120081 Nickel 300/242C1120090 Gold 300/242C1120091 Nickel

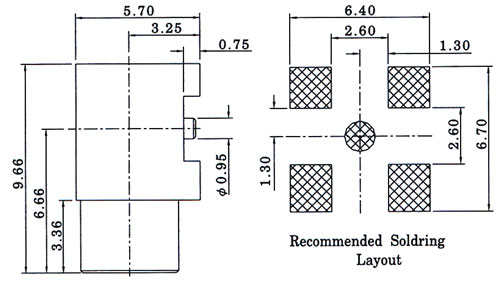

Jack, receptacle,  right angle,
surface mount

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: BeCu, gold plated

Part number Plating 300/242C1120130 Gold 300/242C1120131 Nickel

Alpha Center
 351 Irving Drive, Oxnard, CA 93030, USA
