810 Series |
|
|
|
|
High density 3 rows PCB connectors, mainly dedicated to the aeronautic and military applications.
|
|
|
|
|
General characteristics
|
Material
|
|
Rated current per contact
|
3A
|
Housing
|
Dyallil-phtalate with glass-fibers
|
|
Contact resistance
|
0.012 Ohm max
|
Contacts
|
Stamped, copper alloy, gold plated over nickel
|
|
Dry insulation resistance
|
5000 MOhm min
|
Guides
|
Stainless steel
|
|
Working voltage
|
250V RMS 50Hz
|
|
Temperature
|
-550C to +1250C
|
|
Life
|
500 operations
|
|
|
|
|
|

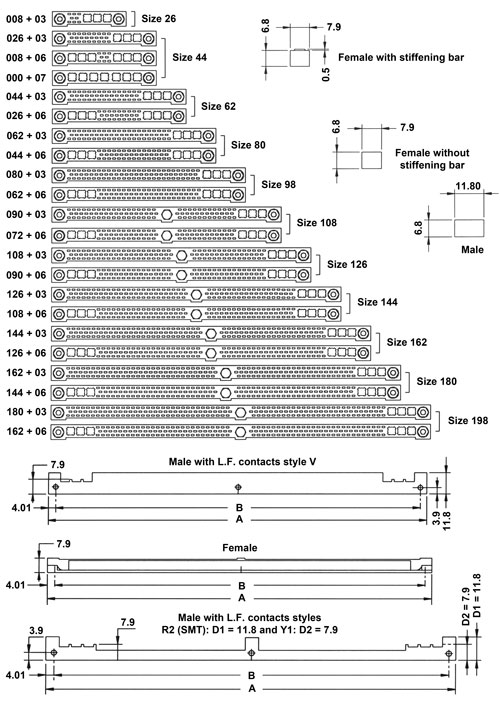

Housing size
|
26
|
44
|
62
|
80
|
98
|
108
|
126
|
144
|
162
|
180
|
198
|
|
# of contacts + # of cavities
|
8+3
|
26+3
8+6
0+7
|
44+3
26+6
|
62+3
44+6
|
80+3
62+6
|
90+3
72+6
|
108+3
90+6
|
126+3
108+6
84+10
|
162+3
126+6
102+10
|
162+3
144+6
120+10
|
180+3
162+6
138+10
|
|
Dim "A"
|
38.5
|
53.7
|
69
|
84.2
|
99.5
|
114.7
|
129.9
|
145.2
|
160.4
|
175.7
|
190.9
|
|
Dim "B"
|
30.48
|
45.72
|
60.96
|
76.20
|
91.44
|
106.68
|
121.92
|
137.16
|
152.4
|
167.64
|
182.88
|
|
|
|
|
|
|
|
|
|
Explanation:
|
|
Style:
|

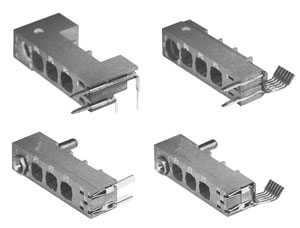

Right angle and SMT male plug, and straight male socket (FM); right angle and SMT male socket, and straight male plug (EM), female plug (FF), female socket (EF)
|
|
# of contacts:
|
0, 8, 26, 44, 62, 72, 80, 84, 90, 102, 108, 120, 126, 138, 144, 162 and 180
|
|
# of cavities:
|
3, 6 and 10 (click to see coaxial inserts ordering separately)
|
|
Stiffening bar:
|
A - without stiffening bar
B - with stiffening bar (available only for female connector)
|
|
Contact termination:
|
Right angle and SMT male connector:V1, V2, R2
Straight PCB female connector:Y1, Y2, Y3, K2, K3, C1
Straight PCB male connector:Y1, Y2, Y4
Right angle and SMT female connector:V1, V2, V3, R2
|
|
Guide style:
|
Right angle and SMT male connector:A, K, F, AB, L, AC, P
Straight PCB female connector:B, C, H, J, Q, S, T, W, X
Straight PCB male connector:G
Right angle and SMT female connector:U, Y, Z
|
|
Termination plating:
|
2 - gold plating (only for straight PCB female connector)
3 - tin alloy plating (for all types of connectors)
|
|
Contact zone plating:
|
0.8 = 0.8 um gold over 1.27 um nickel plating
1.2 = 1.2 um gold over 1.27 um nickel plating
|
|
|
|
|
|
|
|
|
|
|
