804 Series |
|
|
|
|

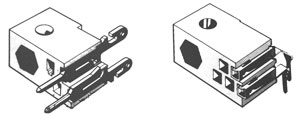

Two-part PCB connectors are designed with 2 or 3 rows of low frequency contacts on a 2.54mm x 1.27mm grid in a molding, including also polarizing and guiding facilities.
|
|
|
|
|
General characteristics
|
Material
|
|
Rated current per contact
|
3A
|
Housing
|
Dyallil-phtalate with glass-fibers
|
|
Working voltage
|
250V RMS 50Hz
|
Contacts
|
Copper alloy, tin alloy or gold over nickel plated
|
|
Climatic
|
-550C to +1250C 56 days
|
Guides
|
Stainless steel or nickel plated brass
|
|
Life
|
500 operations
|
|
|
|
|
|

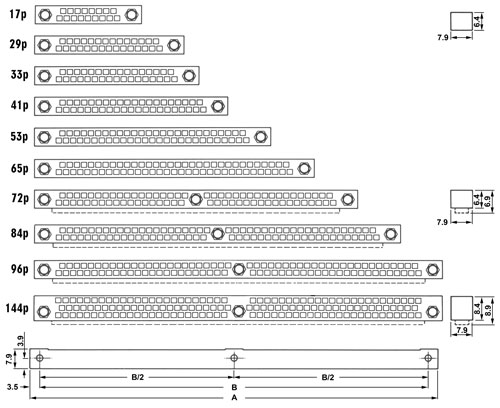

# of contacts
|
17
|
29
|
33
|
41
|
53
|
65
|
72
|
84
|
96
|
144
|
|
Dim "A"
|
37.50
|
52.70
|
57.80
|
68.00
|
83.20
|
98.50
|
113.70
|
128.90
|
144.20
|
144.20
|
|
Dim "B"
|
30.48
|
45.72
|
50.80
|
60.96
|
76.20
|
91.44
|
106.68
|
121.92
|
137.16
|
137.16
|
|
|
|
|
|
Explanation:
|
|
Style:
|
male-plugs (FP, FN), male-sockets (EP, EN), female-sockets (EB, ED, ES), female-plugs (FB, FC, FD, FS)
|
|
# of contacts:
|
17, 29, 33, 41, 53, 65, 72, 84, 96 and 144
|
|
Contact termination:
|
Y, U, Z, W, S1, S2
|
|
Stiffening bar:
|
A - without stiffening bar (available for 17 ~ 65 pos. all types of contacts, 72 ~ 96 pos. contacts Y and U types)
B - with stiffening bar (available for 72 ~ 144 pos. contacts W, Z and S types)
|
|
Guide code:
|
click to see available male guides & female guides
|
|
Termination plating:
|
2 - gold plating, 3 - tin alloy
|
|
Contact zone plating:
|
0.8 = 0.8 um gold over 1.27 um nickel plating
1.2 = 1.2 um gold over 1.27 um nickel plating
|
|
|
|
|
|
|
