BNC Series |
|
|
|
|
Panel mount type
|
|
|
|
|

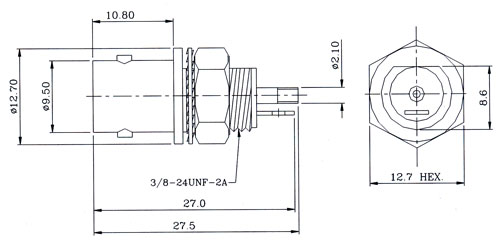

Jack, receptacle, bulkhead
|
Material
|
Body
|
: Brass, Ni plated
|
|
Insulator
|
: P.P.
|
|
Contact
|
: Brass, gold plated
|
|
|
Part number
|
|
300/242C1328100
|
|
|
|

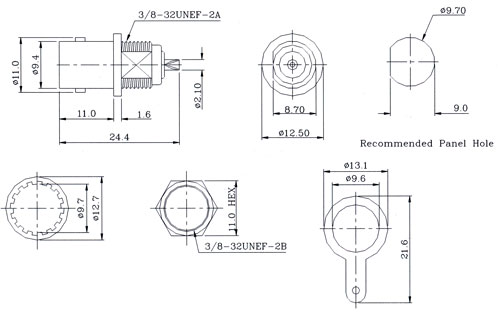

Jack, receptacle, bulkhead
|
Material
|
Body
|
: Zinc alloy, Ni plated
|
|
Insulator
|
: see table
|
|
Contact
|
: PhBz, gold plated
|
|
|
Part number
|
Insulator
|
|
300/242C1328300
|
P.P.
|
|
300/242C1328301
|
Delrin
|
|
300/242C1328302
|
Teflon
|
|
300/242C1328303
|
P.P.-VO
|
|
|
|

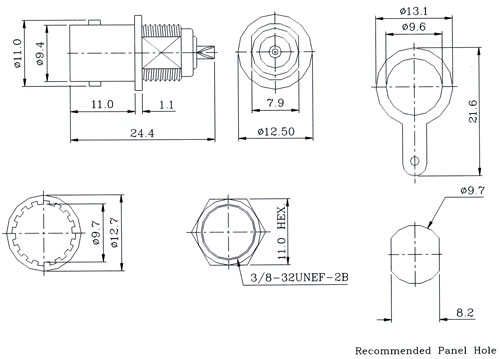

Jack, receptacle, bulkhead
|
Material
|
Body
|
: Zinc alloy, Ni plated
|
|
Insulator
|
: Delrin
|
|
Contact
|
: PhBz, gold plated
|
|
|
Part number
|
|
300/242C1328400
|
|
|
|

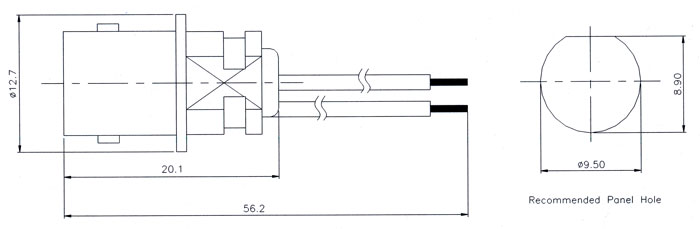

Jack, receptacle, bulkhead, w/wires
|
Material
|
Body
|
: Brass, Ni plated
|
|
Insulator
|
: Teflon
|
|
Contact
|
: PhBz, gold plated
|
|
Wire
|
green, 24AWG
black, 20AWG
|
|
|
Part number
|
|
300/242C1328900
|
|
|
|

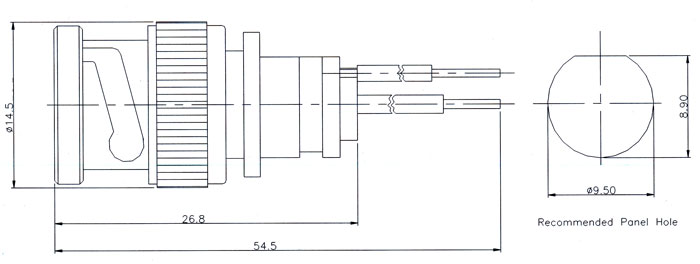

Plug, receptacle, bulkhead, w/wires
|
Material
|
Body
|
: Zinc alloy, Ni plated
|
|
Insulator
|
: P.P.
|
|
Contact
|
: Brass, gold plated
|
|
Wire
|
green, 20AWG
black, 22AWG
|
|
|
Part number
|
|
300/242C1329100
|
|
|
|
|
|
|
|
|
