BNC Series |
|
|
|
|
PCB type
|
|
|
|
|

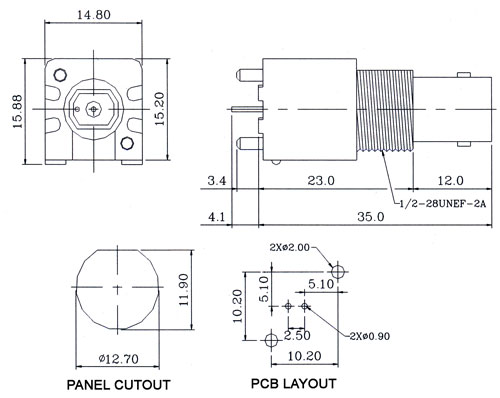

Jack, receptacle, vertical,
plastic housing, mounting post
|
Material
|
Body
|
: Brass, Ni plated
|
|
Insulator
|
: PP
|
|
Contact
|
: PhBz, gold plated
|
|
|
Part number
|
Housing color
|
|
300/242C1325400
|
white
|
|
300/242C1325401
|
black
|
|
|
|

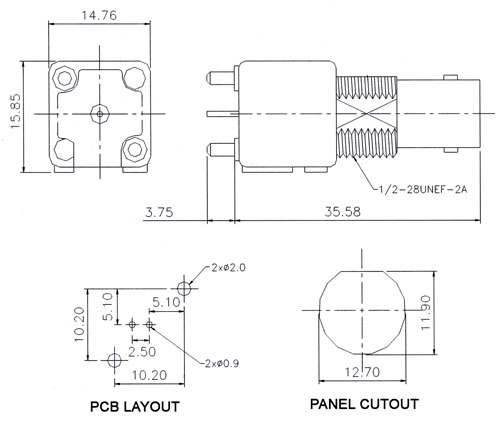

Jack, receptacle, vertical,
metal housing, mounting post
|
Material
|
Body
|
: Brass, Ni plated
|
|
Insulator
|
: PP
|
|
Contact
|
: PhBz, gold plated
|
|
|
Part number
|
|
300/242C1325500
|
|
|
|

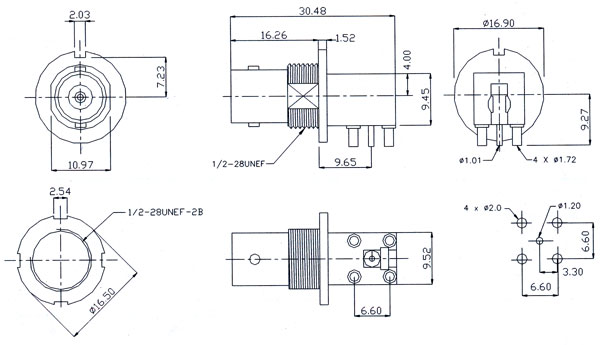

Jack, receptacle, right angle, metal flanged body
|
Material
|
Body
|
: Brass, Ni plated
|
|
Insulator
|
: Teflon
|
|
Contact
|
: PhBz, gold plated
|
|
|
Part number
|
|
300/242C1325700
|
|
|
|

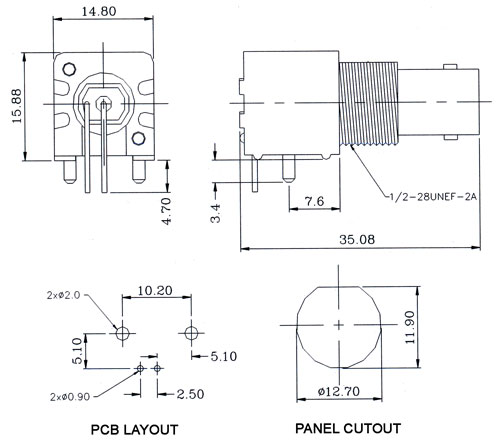

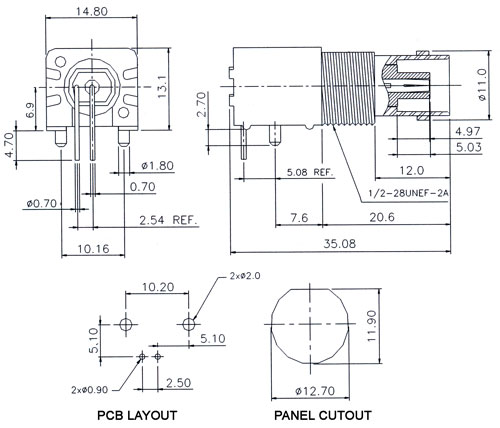

Jack, receptacle, right angle, plastic
|
Material
|
Body
|
: Brass, Ni plated
|
|
Insulator
|
: PP
|
|
Contact
|
: PhBz (see table for plating)
|
|
|
Part number
|
Housing color
|
Plating
|
|
300/242C1326600
|
white
|
Gold
|
|
300/242C1326602
|
Tin
|
|
300/242C1326610
|
black
|
Gold
|
|
300/242C1326612
|
Tin
|
|
300/242C1326700
|
white
|
Gold
|
|
300/242C1326702
|
Tin
|
|
300/242C1326710
|
black
|
Gold
|
|
300/242C1326712
|
Tin
|
|
|
|
|
|
|
|
|
