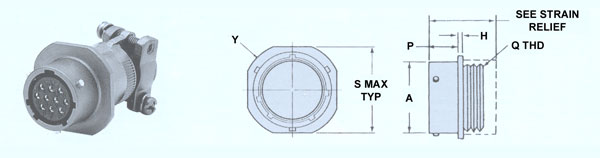

Series I, Solder Type |
|
|
|
|
Cable Connecting Plugs
|
|
|
|
|
AS3111
Service class E, F, J, P
 |
|
|
|
|
|
|
|
Shell size
|
A
|
H
|
P
|
S Max
|
Y Max
|
Q thread Class 2A
|
|
8
|
11.96
|
2.39
|
10.16
|
21.03
|
24.33
|
7/16-28UNEF
|
|
10
|
14.96
|
2.39
|
10.16
|
24.23
|
27.48
|
9/16-24UNEF
|
|
12
|
19.00
|
2.39
|
10.16
|
26.59
|
29.87
|
11/16-24UNEF
|
|
14
|
22.17
|
2.39
|
10.16
|
28.98
|
32.26
|
13/16-20UNEF
|
|
16
|
25.35
|
2.39
|
10.16
|
31.34
|
34.65
|
15/16-20UNEF
|
|
18
|
28.52
|
2.39
|
10.16
|
33.73
|
37.03
|
1 1/16-18UNEF
|
|
20
|
31.70
|
2.92
|
13.59
|
36.91
|
40.18
|
1 3/16-18UNEF
|
|
22
|
34.87
|
2.92
|
13.59
|
40.08
|
43.38
|
1 5/16-18UNEF
|
|
24
|
38.05
|
2.92
|
14.43
|
43.26
|
46.53
|
1 7/16-18UNEF
|
|
|
|
|
Strain Relief
|
|
|
|
|
Type A
|
Type B and F
|
Type E
|
Type J
|
Type P
|
|
|
|
|
|
|
|
|
|
|
|
Shell
size
|
Type A
|
Type B and F
|
Type E
|
Type J
|
Type P
|
|
LA
Max
|
DA
Min
|
V thread
Class 2A
|
LBF
Max
|
HBF
Max
|
GBF
Max
|
BE
Max
|
LE
Max
|
LJ
Max
|
HJ
Max
|
DJ
Max/Min
|
LP
Max
|
DP
Min
|
BP
Max
|
|
8
|
36.58
|
8.51
|
1/2-28UNEF
|
48.41
|
21.03
|
2.02
|
15.44
|
33.73
|
57.68
|
21.03
|
5.84/4.27
|
38.10
|
8.05
|
15.44
|
|
10
|
36.58
|
11.84
|
5/8-24UNEF
|
48.41
|
22.63
|
4.52
|
18.64
|
33.73
|
57.68
|
22.63
|
7.92/5.21
|
38.10
|
11.02
|
16.64
|
|
12
|
36.58
|
15.01
|
3/4-20UNEF
|
48.41
|
25.81
|
7.67
|
21.79
|
33.73
|
61.24
|
25.81
|
11.23/8.59
|
38.10
|
13.92
|
21.79
|
|
14
|
36.58
|
19.05
|
7/8-20UNEF
|
48.41
|
28.98
|
9.27
|
24.99
|
33.73
|
66.01
|
28.98
|
13.56/10.57
|
38.10
|
17.09
|
24.99
|
|
16
|
36.58
|
21.08
|
1-20UNEF
|
51.99
|
30.56
|
12.45
|
28.19
|
33.73
|
74.75
|
30.56
|
15.65/13.97
|
38.10
|
20.27
|
28.19
|
|
18
|
42.21
|
26.49
|
1 3/16-18UNEF
|
57.15
|
37.31
|
15.62
|
31.34
|
33.73
|
80.57
|
37.31
|
17.07/15.24
|
38.10
|
22.83
|
31.34
|
|
20
|
42.21
|
26.49
|
1 3/16-18UNEF
|
57.15
|
37.31
|
15.62
|
34.54
|
36.91
|
91.69
|
37.31
|
18.97/16.13
|
40.87
|
26.01
|
34.54
|
|
22
|
42.21
|
30.43
|
1 7/16-18UNEF
|
57.15
|
42.06
|
18.80
|
37.69
|
36.91
|
95.55
|
42.06
|
21.49/17.02
|
40.87
|
29.18
|
37.69
|
|
24
|
42.47
|
32.84
|
1 7/16-18UNEF
|
58.72
|
44.45
|
20.07
|
40.89
|
38.54
|
101.22
|
44.45
|
22.71/18.80
|
42.85
|
32.36
|
40.89
|
|
|
|
|
|
|
