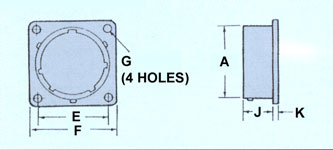

Series I, Solder Type |
|
|
|
|
Dummy Receptacles
|
|
|
|
|
Shell
size
|
A
|
E
Basic
|
F
Max
|
G
|
J
|
K
|
|
8
|
11.96
|
15.09
|
21.03
|
3.05
|
10.46
|
1.57
|
|
10
|
14.94
|
18.26
|
24.23
|
3.05
|
10.46
|
1.57
|
|
12
|
19.00
|
20.62
|
26.60
|
3.05
|
10.46
|
1.57
|
|
14
|
22.17
|
23.01
|
28.98
|
3.05
|
10.46
|
1.57
|
|
16
|
25.35
|
24.61
|
31.34
|
3.05
|
10.46
|
1.57
|
|
18
|
28.52
|
26.97
|
33.73
|
3.05
|
11.73
|
1.57
|
|
20
|
31.70
|
23.96
|
36.91
|
3.05
|
14.12
|
2.39
|
|
22
|
34.87
|
31.75
|
40.08
|
3.05
|
14.12
|
2.39
|
|
24
|
38.05
|
34.93
|
43.26
|
3.73
|
14.96
|
2.39
|
|
|
|
|
|
|
