Side Entry Double Level Modular Jacks |
|
|
|
|
Modular jack, side entry, double level, 4 or 6 ports, 6 or 8 positions, PCB mount
|
|
|
|
|
|
MATERIAL
|
|
|
HOUSING:
|
ENGINEERING THERMOPLASTIC, UL 94V-0
|
|
SHIELD:
|
STAINLESS STEEL OR BRASS, NICKEL PLATED
|
|
CONTACTS:
|
PHOSPHOR BRONZE, GOLD PLATED OVER NICKEL IN CONTACT AREA, TIN PLATED OVER NICKEL IN SOLDER AREA
|
|
|
|
|
|
# of ports
|

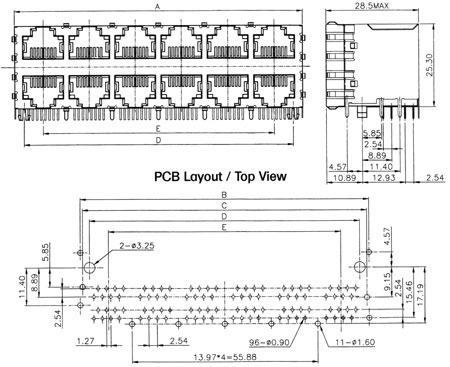

Dimensions (mm)
|
|
A
|
B
|
C
|
D
|
E
|
|
2x 4
|
59.19
|
58.92
|
57.59
|
53.34
|
41.91
|
|
2 x 6
|
87.13
|
86.86
|
85.53
|
81.28
|
69.85
|
|
|
|
|
|
|
|
Selection explanation:
|
|
Shielding option:
|
N - not shielded
S - shielded
|
|
Contact plating:
|
0 - gold flash
1 - 6 microinch gold plated
2 - 15 microinch gold plated
3 - 30 microinch gold plated
4 - 50 microinch gold plated
|
|
|
|
|
|
|
