USB & Firewire Connectors |
|
|
|
|

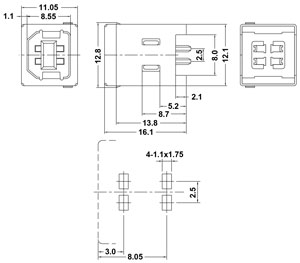

USB jack, B type, thru hole version
|
|
|
|
|
SPECIFICATIONS:
|
|
RATING:
|
1A @ 30V AC R.M.S.
|
|
INSULATION RESISTANCE:
|
1000 MOhm min
|
|
CONTACT RESISTANCE:
|
30 mOhm max
|
|
DIELECTRIC WITHSTANDING VOLTAGE:
|
750V AC
|
|
TEMPERATURE RATING:
|
-55°C TO +105°C
|
|
MATERIAL:
|
|
HOUSING:
|
PBT or high temperature polyester + glass fiber, UL 94V-0
|
|
CONTACT:
|
Brass
|
|
SHELL:
|
Copper alloy
|
|
COLOR:
|
Black, ivory, white
|
|
|
|
|
|
Selection explanation:
|
|
Contact plating:
|
F - gold flash over 50u" nickel
G - gold flash over 30u" Pd-Ni over 50u"
nickel
J - 30u" gold over 50u" nickel
|
|
Shell option:
|
T - tin plated
N - nickel plated
|
|
Insulator color option:
|
B - black
I - ivory
W - frost white
|
|
|
|
|
|
|
