Part number 3CO/PS Select shell size - contact code 00-1 0-1 1-1 1-2 00-2 0-2 1-3 1-4 00-3 1-5 1-6 2-1 3-2 JA Pin code P S Collet code L29 L31 L42 L44 L62
Jack
Pin code
Male
Female
P
S

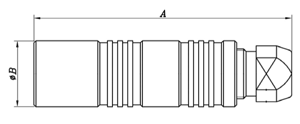

Shell size
Dim "A"
Dim "B"
00
25.0
6.5
0
33.5
8.9
1
40.5
11.9
2
50.0
14.8
3
59.0
17.8
