Push-Pull Connectors. PM Series |
|
|
|
|

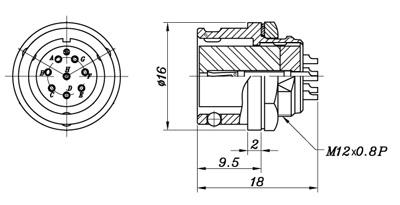

Part number 3CO/PMR |
|
|
|
|
Socket, female |
 |
|
|
|
Specifications
|
|
Shell size
|
9
|
|
Material:
|
|
# of contacts
|
8
|
Housing
|
Brass, Ni plated
|
|
Rated current
|
2A
|
Insulator
|
PA, black/ivory
|
|
Rated voltage
|
200V rms
|
Male contact
|
Brass, gold plated
|
|
Contact resistance
|
8mOhm min
|
Female contact
|
PhBz, gold plated
|
|
Insulation resistance
|
1000MOhm @500V DC min
|
|
|
Withstanding voltage
|
700V rms
|
|
Temperature
|
-25 deg. C to +85 deg. C
|
|
|
|
|
|
|
