SMA Series |
|
|
|
|
Reverse polarity type
|
|
|
|
|

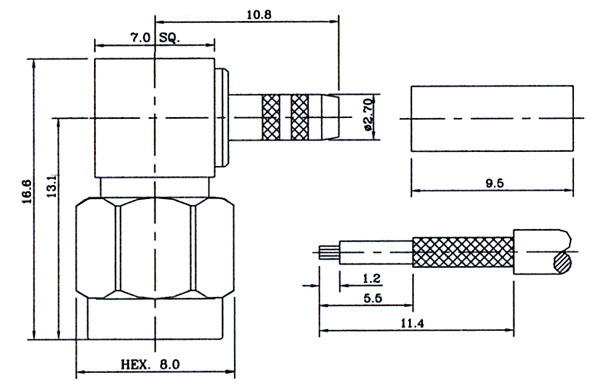

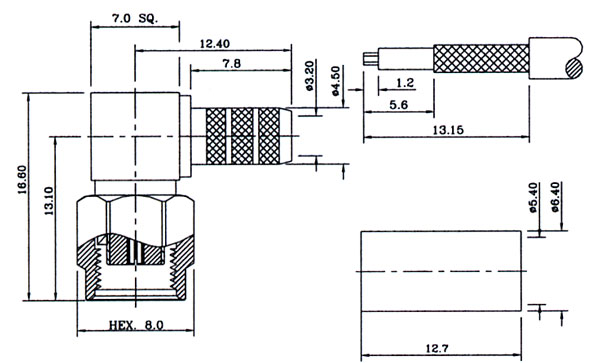

Plug, right angle, crimp type
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: BeCu, gold plated
|
|
|
|

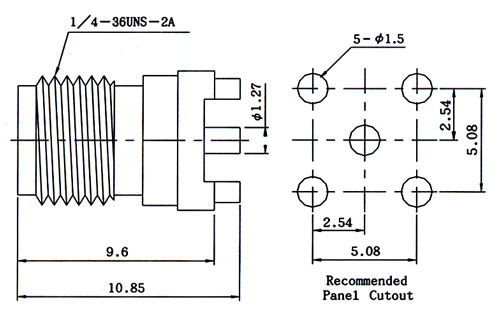

Jack, vertical, PCB mount
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: Brass, gold plated
|
|
|
Part number
|
Plating
|
|
300/242C1339200
|
Gold
|
|
300/242C1339201
|
Nickel
|
|
|
|
Jack, edge PCB mount
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: Brass, gold plated
|
|
|
Part number
|
PCB Thk (Dim A)
|
Plating
|
|
300/242C1340320
|
1.6
|
Gold
|
|
300/242C1340321
|
Nickel
|
|
300/242C1340330
|
0.79
|
Gold
|
|
300/242C1340331
|
Nickel
|
|
|
|

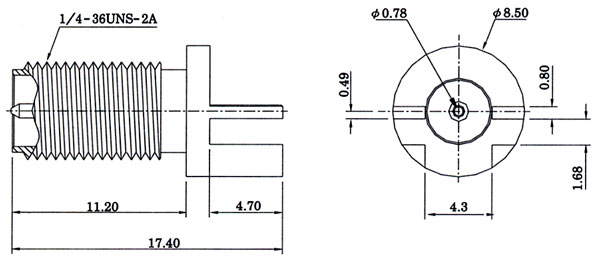

Jack, bulkhead, edge PCB mount
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: Brass, gold plated
|
|
|
Part number
|
Plating
|
|
300/242C1340340
|
Gold
|
|
300/242C1340341
|
Nickel
|
|
|
|

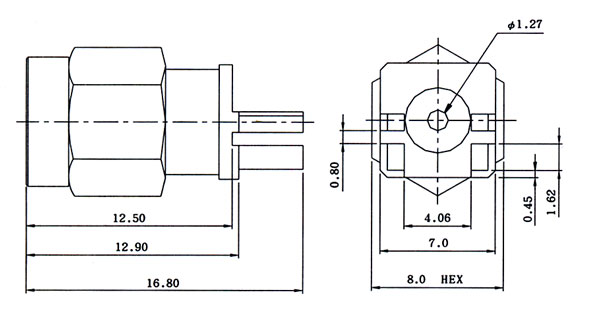

Plug, edge PCB mount
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: Brass, gold plated
|
|
|
Part number
|
Plating
|
|
300/242C1340350
|
Gold
|
|
300/242C1340351
|
Nickel
|
|
|
|
|
|
|
|
|
