SMA Series

Jack,  2-hole flange, round
and half round contact

Material

Body	:Brass (see table for plating)
Insulator	:Teflon
Contact	:BeCu, gold plated

Part number	Contact type	Plating

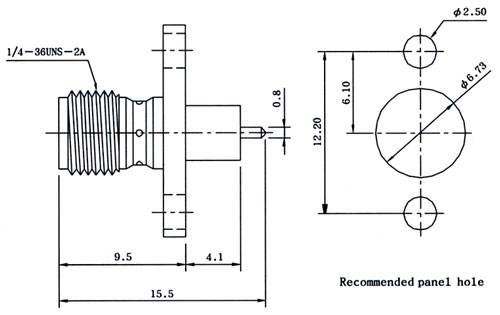

300/242C1322100	Round	Gold
300/242C1322101		Nickel

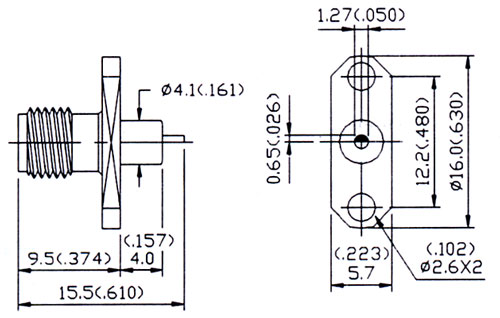

300/242C1340090	Half round	Gold
300/242C1340091		Nickel

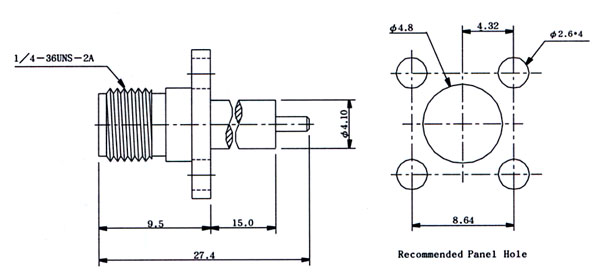

Jack,  4-hole flange, exposed insulator

Material

Body	:Brass (see table for plating)
Insulator	:Teflon
Contact	:BeCu, gold plated

Part number	Plating
300/242C1321100	Gold
300/242C1321101	Nickel

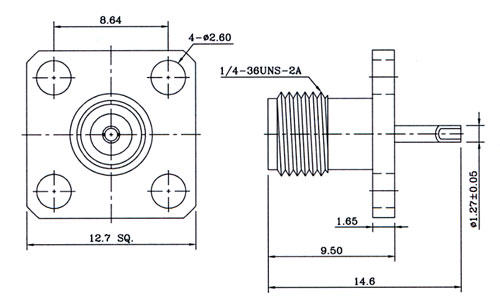

Jack,  4-hole flange, solder
contact

Material

Body	:Brass (see table for plating)
Insulator	:Teflon
Contact	:BeCu, gold plated

Part number	Plating
300/242C1321300	Gold
300/242C1321301	Nickel

Jack,  4-hole flange, blunt post contact, tab contact and slotted contact

Material

Body	:Brass (see table for plating)
Insulator	:Teflon
Contact	:BeCu, gold plated

Part number	Contact type	Plating

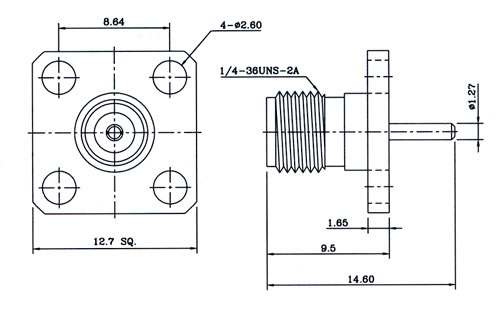

300/242C1321200	Blunt post	Gold
300/242C1321201		Nickel

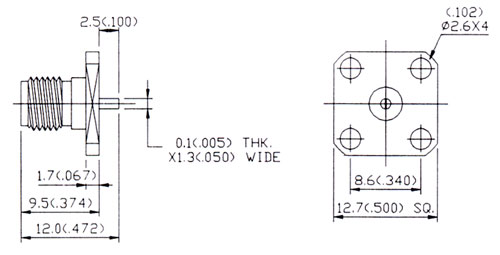

300/242C1340100	Tab	Gold
300/242C1340101		Nickel

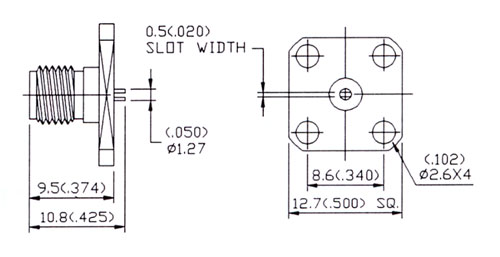

300/242C1340110	Slotted	Gold
300/242C1340111		Nickel
