N Series |
|
|
|
|
"N" connectors are designed with characteristic impedance of 50 Ohm a frequency range up to 11 GHz. The screw coupling provides a sturdy and reliable connection. "N" connectors are designed for compatibility with connectors manufactured to MIL-C-39012.
|
|
|
|

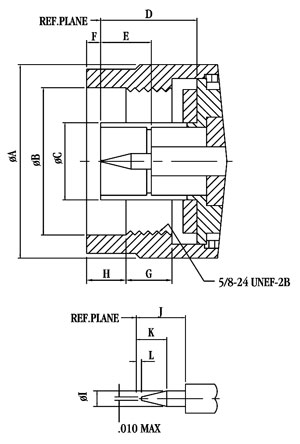

Plug interface
|

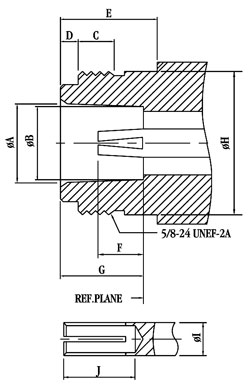

Jack interface
|
|
|
Item
|
Plug interface dimensions in mm
|
min
|
max
|
A
|
-
|
21.01
|
B
|
16.0
|
-
|
C
|
-
|
8.38
|
D
|
10.11
|
10.46
|
E
|
5.33
|
5.84
|
F
|
0.41
|
1.52
|
G
|
4.50
|
-
|
H
|
4.01
|
4.27
|
I
|
1.60
|
1.68
|
J
|
5.33
|
-
|
K
|
2.79
|
3.56
|
L
|
0.08
|
-
|
|
|
Item
|
Jack interface dimensions in mm
|
min
|
max
|
A
|
8.53
|
8.74
|
B
|
8.03
|
8.13
|
C
|
4.37
|
5.13
|
D
|
1.19
|
1.96
|
E
|
10.72
|
-
|
F
|
4.75
|
5.26
|
G
|
9.04
|
9.19
|
H
|
-
|
15.93
|
I
|
-
|
3.15
|
J
|
5.33
|
-
|
|
|
|
|
|
|
Material
|
Body
|
Brass, nickel plated
|
Center contact
|
Brass (male)/BeCu or PhBz (female), gold or nickel plated
|
Insulator
|
Teflon
|
Crimp ferrule
|
Annealed copper, gold or nickel plated
|
Gasket
|
Silicone rubber
|
Electrical
|
Impedance
|
50 Ohm
|
Frequency range
|
0 ~ 10 GHz
|
Working voltage
|
1000V rms max
|
Insulation resistance
|
5000 MOhm min
|
Dielectric withstanding voltage
|
2500V rms min
|
Contact resistance
|
Center contact: 1.0 mOhm max Outer contact: 0.2 mOhm max
|
VSWR
|
1.3 max
|
Insertion loss
|
0.15 dB max @3.0 GHz
|
Mechanical
|
Mating
|
Screw type coupling mechanism
|
Coupling nut retention force
|
100 lbs min
|
Coupling proof torque
|
15.0 in/lbs min (for plug only)
|
Durability
|
500 matings
|
Cable retention force
|
Non-crimp = 40 lbs min RG178 = 7.3 lbs min RG316 = 12.1 lbs min RG58 = 28.7 lbs min
|
Environmental
|
Corrosion (sail spray)
|
MIL-STD-202F, Method 101D, Condition B
|
Thermal shock
|
MIL-STD-202F, Method 1017G, Condition B
|
Vibration
|
MIL-STD-202F, Method 204D, Condition B
|
Mechanical shock
|
MIL-STD-202F, Method 213B, Condition A
|
|
|
|
|
|
