5015-Type Circular Connectors |
|
|
|
|
Receptacles
|
|
|
|
|
300/AS3100

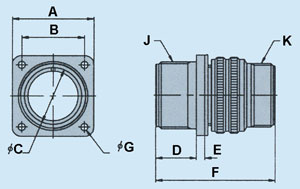

Wall mounting receptacle
 |
300/AS3102

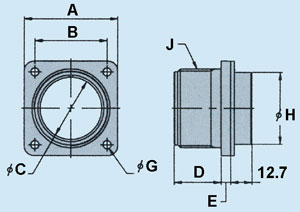

Box mounting receptacle
 |
|
|
|
|
|
Shell size
|
A
|
B
|
ØC
|
D
|
E
Max/Min
|
F
Max
|
ØG
|
ØH
|
J
|
K
|
|
8S
|
22.23
|
15.09
|
9.40
|
14.28
|
3.96/1.58
|
37.31
|
3.05
|
13.51
|
1/2-28UNEF
|
1/2-28UNEF
|
|
10S
|
25.40
|
18.26
|
11.38
|
14.28
|
3.96/1.58
|
38.88
|
3.05
|
16.60
|
5/8-24UNEF
|
1/2-28UNEF
|
|
10SL
|
25.40
|
18.26
|
11.38
|
14.28
|
3.96/1.58
|
38.88
|
3.05
|
19.35
|
5/8-24UNEF
|
5/8-24UNEF
|
|
12S
|
27.79
|
20.62
|
14.15
|
14.28
|
3.96/1.58
|
42.87
|
3.05
|
19.35
|
3/4-20UNEF
|
5/8-24UNEF
|
|
12
|
27.79
|
20.62
|
14.15
|
19.05
|
3.96/1.58
|
52.37
|
3.05
|
19.35
|
3/4-20UNEF
|
5/8-24UNEF
|
|
14S
|
30.18
|
23.01
|
17.33
|
14.28
|
3.96/1.58
|
42.87
|
3.05
|
23.01
|
7/8-20UNEF
|
3/4-20UNEF
|
|
14
|
30.18
|
23.01
|
17.33
|
19.05
|
3.96/1.58
|
52.37
|
3.05
|
23.01
|
7/8-20UNEF
|
3/4-20UNEF
|
|
16S
|
32.54
|
24.61
|
20.50
|
14.28
|
3.96/1.58
|
42.87
|
3.05
|
26.21
|
1-20UNEF
|
7/8-20UNEF
|
|
16
|
32.54
|
24.61
|
20.50
|
19.05
|
3.96/1.58
|
52.37
|
3.05
|
26.21
|
1-20UNEF
|
7/8-20UNEF
|
|
18
|
34.93
|
26.97
|
23.68
|
19.05
|
5.15/2.39
|
52.37
|
3.05
|
29.36
|
1 1/8-18UNEF
|
1-20UNEF
|
|
20
|
38.10
|
29.36
|
26.88
|
19.05
|
5.15/2.39
|
55.57
|
3.05
|
32.56
|
1 1/4-18UNEF
|
1 3/16-18UNEF
|
|
22
|
41.28
|
31.75
|
30.03
|
19.05
|
5.15/2.39
|
55.57
|
3.05
|
35.71
|
1 3/8-18UNEF
|
1 3/16-18UNEF
|
|
24
|
44.45
|
34.93
|
33.20
|
20.63
|
5.15/2.39
|
58.72
|
3.73
|
38.91
|
1 1/2-18UNEF
|
1 7/16-18UNEF
|
|
28
|
50.80
|
39.67
|
38.77
|
20.63
|
5.15/2.39
|
58.72
|
3.73
|
45.26
|
1 3/4-18UNS
|
1 7/16-18UNEF
|
|
32
|
57.15
|
44.45
|
45.12
|
22.23
|
9.11/3.18
|
61.92
|
4.39
|
51.61
|
2-18UNS
|
1 3/4-18UNS
|
|
36
|
63.50
|
49.23
|
50.68
|
22.23
|
9.11/3.18
|
61.92
|
4.39
|
57.96
|
2 1/4-16UN
|
2-18UNS
|
|
40
|
69.85
|
55.58
|
57.03
|
22.23
|
9.11/3.18
|
61.92
|
4.39
|
64.31
|
2 1/2-16UN
|
2 1/4-16UN
|
|
44
|
76.20
|
60.33
|
63.38
|
22.23
|
9.11/3.18
|
65.07
|
4.39
|
70.66
|
2 3/4-16UN
|
2 1/2-16UN
|
|
48
|
82.55
|
66.68
|
69.73
|
22.23
|
9.11/3.18
|
65.07
|
4.39
|
77.01
|
3-16UN
|
3-16UN
|
|
|
|
|
|
|
