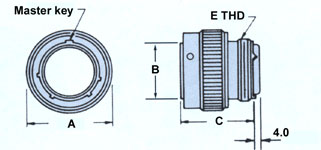

Series II, Crimp Type |
|
|
|
|
Straight Plugs
|
|
|
|
|
AS3475 (RFI Grounding), AS3476
|
|
Shell
size
|
A
Max
|
B
|
C
Max
|
E thread
class 2A
|
|
8
|
19.86
|
8.94 ~ 9.09
|
31.24
|
1/2-20UNF
|
|
10
|
23.52
|
12.19 ~ 12.34
|
31.24
|
5/8-24UNEF
|
|
12
|
26.49
|
15.04 ~ 15.19
|
31.24
|
3/4-20UNEF
|
|
14
|
30.04
|
18.21 ~ 18.36
|
31.24
|
7/8-20UNEF
|
|
16
|
33.15
|
21.39 ~ 21.54
|
31.24
|
1-20UNEF
|
|
18
|
35.33
|
23.93 ~ 24.08
|
31.24
|
1 1/16-18UNEF
|
|
20
|
38.89
|
27.10 ~ 27.25
|
31.24
|
1 3/16-18UNEF
|
|
22
|
42.06
|
30.28 ~ 30.43
|
31.24
|
1 5/16-18UNEF
|
|
24
|
45.14
|
33.45 ~ 33.60
|
31.24
|
1 7/16-18UNEF
|
|
|
|
|
|
|
|
|
Strain Relief
|
|
|
|
|
Shell
size
|
Type I
|
Type E
|
Type L
|
|
V
Max
|
F
Max
|
V
Max
|
G
Max
|
H
Max
|
V
Max
|
|
10
|
38.28
|
7.26
|
47.17
|
22.35
|
7.26
|
54.10
|
|
12
|
38.28
|
10.57
|
47.17
|
24.13
|
10.57
|
57.53
|
|
14
|
38.28
|
12.09
|
53.14
|
25.65
|
12.09
|
59.82
|
|
16
|
38.28
|
15.90
|
53.14
|
27.18
|
15.90
|
63.25
|
|
18
|
38.28
|
17.93
|
53.14
|
28.70
|
17.93
|
65.76
|
|
20
|
38.28
|
21.11
|
53.14
|
30.23
|
21.11
|
69.14
|
|
22
|
38.28
|
24.28
|
53.14
|
32.00
|
24.28
|
72.26
|
|
24
|
38.28
|
27.46
|
53.14
|
33.53
|
27.46
|
75.36
|
|
|
|
|
|
|
