Top Entry Modular Jacks |
|
|
|
|

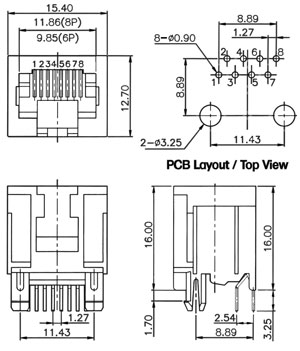

Modular jack, top entry, CAT5, 6 or 8 positions, unshielded, PCB mount
|
|
|
|
|
|
MATERIAL
|
|
|
HOUSING:
|
ENGINEERING THERMOPLASTIC, UL 94V-0
|
|
CONTACTS:
|
PHOSPHOR BRONZE, GOLD PLATED OVER NICKEL IN CONTACT AREA, TIN PLATED OVER NICKEL IN SOLDER AREA
|
|
|
|
|
|
|
|
|
Selection explanation:
|
|
Option:
|
F - flanged
L - flangeless
|
|
Key option:
|
1 - with key
2 - without key
|
|
Contact plating:
|
0 - gold flash
1 - 6 microinch gold plated
2 - 15 microinch gold plated
3 - 30 microinch gold plated
4 - 50 microinch gold plated
|
|
|
|
|
|
|
