Top Entry Modular Jacks |
|
|
|
|
Modular jack, top entry, 4 ~ 8 ports, 8 positions, unshielded, with LED, PCB mount
|
|
|
|
|
|
MATERIAL
|
|
|
HOUSING:
|
ENGINEERING THERMOPLASTIC, UL 94V-0
|
|
CONTACTS:
|
PHOSPHOR BRONZE, GOLD PLATED OVER NICKEL IN CONTACT AREA, TIN PLATED OVER NICKEL IN SOLDER AREA
|
|
|
|
|
|

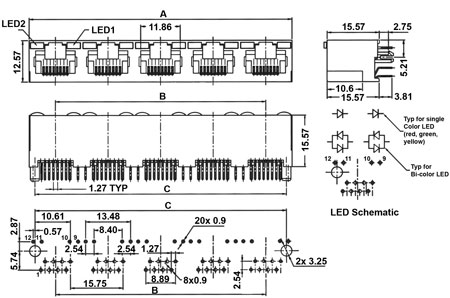

# of ports
|
Dimensions (mm)
|
|
A
|
B
|
C
|
|
4
|
63.00
|
47.25
|
59.59
|
|
5
|
78.75
|
63.00
|
75.34
|
|
6
|
94.50
|
78.75
|
91.10
|
|
8
|
126.00
|
110.25
|
122.60
|
|
|
|
|
|
|
|
Selection explanation:
|
|
LED option:
|
Code
|
LED2
|
LED1
|
|
Contact plating:
|
0 - gold flash
1 - 6 microinch gold plated
2 - 15 microinch gold plated
3 - 30 microinch gold plated
4 - 50 microinch gold plated
|
|
0
|
no LED
|
no LED
|
|
1
|
yellow
|
green
|
|
2
|
no LED
|
green
|
|
3
|
green
|
yellow
|
|
4
|
green
|
green
|
|
5
|
yellow
|
yellow
|
|
6
|
yellow/green
|
yellow/green
|
|
7
|
green/red
|
green/red
|
|
8
|
yellow/green
|
yellow
|
|
|
|
|
|
|
