Top Entry Modular Jacks |
|
|
|
|

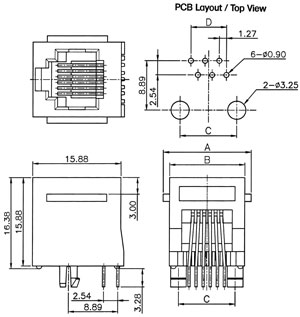

Modular jack, top entry, 4 ~ 8 positions, unshielded, PCB mount
|
|
|
|
|
|
MATERIAL
|
|
|
HOUSING:
|
ENGINEERING THERMOPLASTIC, UL 94V-0
|
|
CONTACTS:
|
PHOSPHOR BRONZE, GOLD PLATED OVER NICKEL
|
|
|
|
|
|
# of positions
|
Dimensions (mm)
|
|
A
|
B
|
C
|
D
|
|
4
|
13. 97
|
11. 43
|
7.6 2
|
3.8 1
|
|
6
|
15. 75
|
13. 46
|
10. 16
|
6.3 5
|
|
8
|
17. 76
|
15. 36
|
11. 43
|
8.8 9
|
|
|
|
|
|
|
|
Selection explanation:
|
|
Flange option:
|
F - flanged
L - flangeless
|
|
Contact plating:
|
0 - gold flash
1 - 6 microinch gold plated
2 - 15 microinch gold plated
3 - 30 microinch gold plated
4 - 50 microinch gold plated
|
|
|
|
|
|
|
