USB & Firewire Connectors

IEEE 1394 (Firewire) jacks, 6 pos, right angle, surface  mount

SPECIFICATIONS:

RATING:

1A

INSULATION RESISTANCE:

100 MOhm min

CONTACT RESISTANCE:

30 mOhm max

DIELECTRIC WITHSTANDING VOLTAGE:

500V AC

LIFE:

1500 cycles min

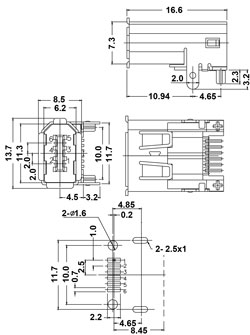

300/272JFW01MXXX
 (without rear shell)

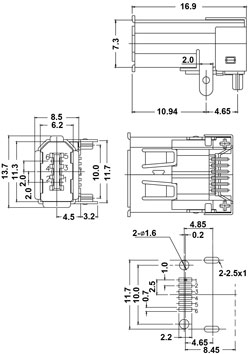

300/272JFW02MXXX
 (with rear shell)

Part number:
300/272JFW0 -M

Selection explanation:

Rear shell option:

1 - without rear
     shell
2 - with rear shell

Contact plating:

F - gold flash over 50u" nickel
G - gold flash over 30u"
     Pd-Ni over 50u" nickel
J - 30u" gold over 50u" nickel

Shell option:

T - tin plated
N - nickel plated

Insulator color option:

B - black
I - ivory
W - frost white
