Push-Pull Connectors. PN Series |
|
|
|
|
|
Part number
|
3CO/PNH8-4PS
|
3CO/PNH8-6PS
|
|

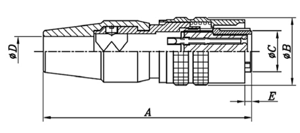

Dim "A"
|
35.0
|
|
Dim "B"
|
11.5
|
|
Dim "C"
|
7.0
|
|
Dim "D"
|
5.1
|
|
Dim "E"
|
0.6
|
|
|
|
|
|
Specifications
|
|
Material:
|
|
Housing
|
Zink alloy / Brass, Ni plated
|
|
Insulator
|
PA, black
|
|
Male contact
|
Brass, gold / silver plated
|
|
Female contact
|
PhBz, gold / silver plated
|
|
|
|
Electrical:
|
|
Shell size
|
8
|
|
# of contacts
|
4
|
6
|
|
Current
|
2A
|
|
Withstanding voltage
|
300V AC
|
|
Contact resistance
|
10mOhm max
|
|
Insulation resistance
|
1000MOhm min
|
|
|
|
|
|
|
