Push-Pull Connectors. PN Series |
|
|
|
|
|
Receptacle, male, r/a, PCB |
 |
|
|
|
|
|

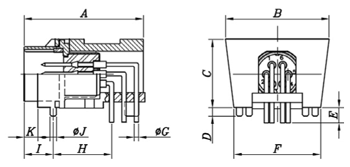

Part number
|
3CO/PNH8-4LK1
|
3CO/PNH8-6LK1
|
|
Dim "A"
|
19.2
|
|
Dim "B"
|
16.7
|
|
Dim "C"
|
11.0
|
|
Dim "D"
|
1.3
|
|
Dim "E"
|
2.4
|
|
Dim "F"
|
14.0
|
|
Dim "G"
|
0.7
|
|
Dim "H"
|
9.4
|
|
Dim "I"
|
4.7
|
|
Dim "J"
|
1.0
|
|
Dim "K"
|
2.2
|
|
|
|
|
|
Specifications
|
|
Material:
|
|
Housing
|
Zink alloy / Brass, Ni plated
|
|
Insulator
|
PA, black
|
|
Male contact
|
Brass, gold / silver plated
|
|
Female contact
|
PhBz, gold / silver plated
|
|
|
|
Electrical:
|
|
Shell size
|
8
|
|
# of contacts
|
4
|
6
|
|
Current
|
2A
|
|
Withstanding voltage
|
300V AC
|
|
Contact resistance
|
10mOhm max
|
|
Insulation resistance
|
1000MOhm min
|
|
|
|
|
|
|
