Push-Pull Connectors. PN Series |
|
|
|
|
|
Socket, male, PCB |
 |
|
|
Shell size 8 panel layout
|
Shell size 10 panel layout
 |
|
|
|
|
|
Part number
|

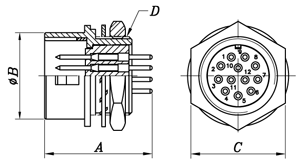

Dim "A"
|
Dim "B"
|
Dim "C"
|
Dim "D"
|
|
3CO/PNH8-4RP
|
15.7
|
8.8
|
10.0
|
M8 x 0.5
|
|
3CO/PNH8-5RP
|
|
3CO/PNH8-6RP
|
|
3CO/PNH10-2RP
|
16.2
|
11.9
|
13.0
|
M11 x 0.75
|
|
3CO/PNH10-3RP
|
|
3CO/PNH10-4RP
|
|
3CO/PNH10-9RP
|
|
3CO/PNH10-10PR
|
|
3CO/PNH10-12RP
|
|
|
|
|
|
Specifications
|
|
Material:
|
|
Housing
|
Zink alloy / Brass, Ni plated
|
|
Insulator
|
PA, black
|
|
Male contact
|
Brass, gold / silver plated
|
|
Female contact
|
PhBz, gold / silver plated
|
|
|
|
Electrical:
|
|
Shell size
|
8
|
10
|
|
# of contacts
|
4
|
5
|
6
|
2
|
3
|
4
|
9
|
10
|
12
|
|
Current
|
2A
|
3A
|
2A
|
|
Withstanding voltage
|
300V AC
|
500V AC
|
300V AC
|
|
Contact resistance
|
10mOhm max
|
|
Insulation resistance
|
1000MOhm min
|
|
|
|
|
|
|
