Push-Pull Connectors. PN Series |
|
|
|
|
|

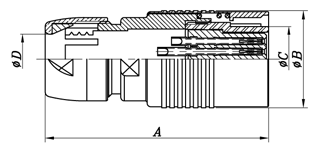

Part number
|
Dim "A"
|
Dim "B"
|
Dim "C"
|
Dim "D"
|
|
3CO/PN1H8-4P
|
28.0
|
11.0
|
9.0
|
5.2
|
|
3CO/PN1H8-5P
|
|
3CO/PN1H8-6P
|
|
3CO/PN1H10-2P
|
32.0
|
14.0
|
12.0
|
7.2
|
|
3CO/PN1H10-3P
|
|
3CO/PN1H10-4P
|
|
3CO/PN1H10-9P
|
|
3CO/PN1H10-10P
|
|
3CO/PN1H10-12P
|
|
|
|
|
|
Specifications
|
|
Material:
|
|
Housing
|
Zink alloy / Brass, Ni plated
|
|
Insulator
|
PA, black
|
|
Male contact
|
Brass, gold / silver plated
|
|
Female contact
|
PhBz, gold / silver plated
|
|
|
|
Electrical:
|
|
Shell size
|
8
|
10
|
|
# of contacts
|
4
|
5
|
6
|
2
|
3
|
4
|
9
|
10
|
12
|
|
Current
|
2A
|
3A
|
2A
|
|
Withstanding voltage
|
300V AC
|
500V AC
|
300V AC
|
|
Contact resistance
|
10mOhm max
|
|
Insulation resistance
|
1000MOhm min
|
|
|
|
|
|
|
