BNC Series |
|
|
|
|
PCB type
|
|
|
|
|

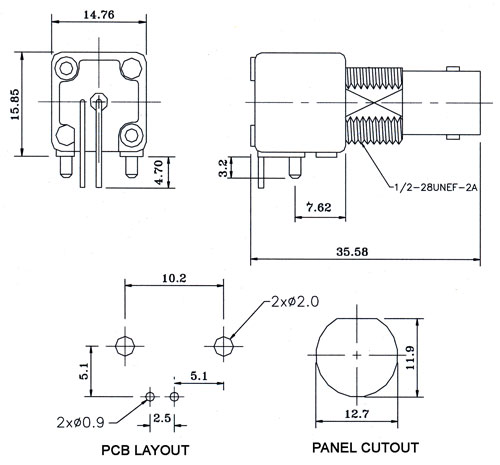

Jack, receptacle, right angle, metal
|
Material
|
Body
|
: Brass, Ni plated
|
|
Insulator
|
: PP
|
|
Contact
|
: PhBz (see table for plating
|
|
|
|
Jack, receptacle, right angle
filter, board lock, 500V DC
|
Material
|
Body
|
: Brass, Ni plated
|
|
Insulator
|
: PP
|
|
Contact
|
: PhBz, gold plated
|
|
|
Part number
|
Housing color
|
|
300/242C1326900
|
white
|
|
300/242C1326901
|
black
|
|
|
|

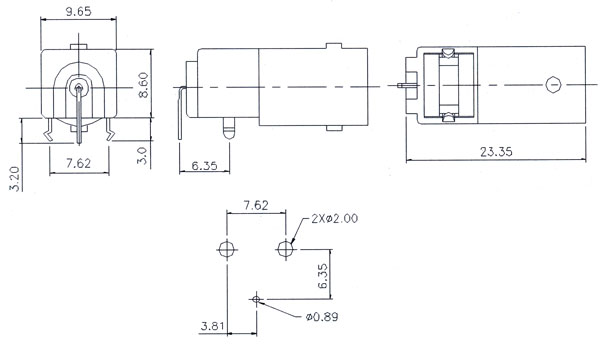

Jack, mini, receptacle, right
angle, metal
|
Material
|
Body
|
: Brass, Ni plated
|
|
Insulator
|
: PP
|
|
Contact
|
: PhBz (see table for plating)
|
|
|
Part number
|
Plating
|
|
300/242C1327000
|
Gold
|
|
300/242C1327001
|
Tin
|
|
|
|

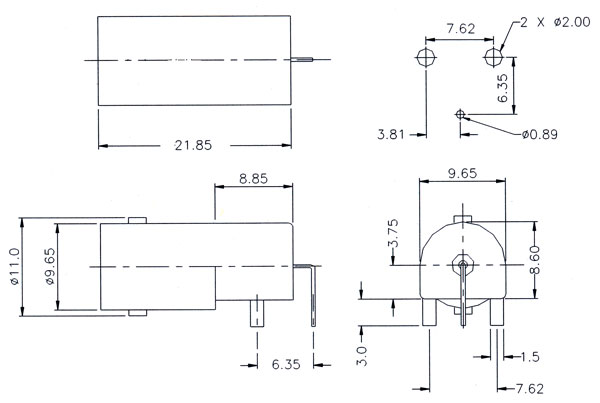

Jack, min, receptacle, right
angle, metal, mounting post
|
Material
|
Body
|
: Brass, Ni plated
|
|
Insulator
|
: PP
|
|
Contact
|
: PhBz, gold plated
|
|
|
Part number
|
|
300/242C1327900
|
|
|
|
|
|
|
|
|
