DC Power Jacks |
|
|
|
|
|
|
P/n
|
Size
|
Rating
|
|
300/209C1151200
|
5.5 x 2.1
|
12V, 0.5A
|
|
300/209C1151201
|
5.5 x 2.5
|
12V, 1A
|
|
300/209C1151202
|
4.0 x 1.7
|
3.15~6.3V, 2A
|
|
300/209C1151203
|
4.75 x 1.7
|
6.3~10.5, 2A
|
|
300/209C1151204
|
5.5 x 3.3, pin 1.0
|
10.5~13.5V, 2A
|
|
300/209C1151205
|
6.5 x 4.3, pin 1.4
|
13.5~18V, 2A
|
|
|
|
P/n
|
Size
|
Rating
|
|
300/209C1151206
|
5.5 x 2.1
|
12V, 0.5A
|
|
300/209C1151207
|
5.5 x 2.5
|
12V, 1A
|
|
300/209C1151208
|
2.35 x 0.7
|
3.15V max
|
|
300/209C1151209
|
4.0 x 1.7
|
3.15~6.3V
|
|
300/209C1151210
|
4.75 x 1.7
|
6.3~10.5V
|
|
300/209C1151332
|
3.4 x 1.4
|
6V, 0.5A
|
|
300/209C1151333
|
3.8 x 1.4
|
12V, 0.5A
|
|
|
|
|
 |
 |
 |
|
 |
 |
|

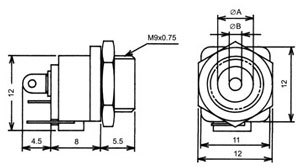

Jack, panel mnt
|
Jack, panel mnt
|
|
|
P/n
|
Size
|
Rating
|
|
300/209C1151339
|
5.5 x 2.1
|
12V, 0.5A
|
|
300/209C1151340
|
5.5 x 2.5
|
12V, 1A
|
|
300/209C1151341
|
4.0 x 1.7
|
3.15~6.3V
|
|
300/209C1151342
|
4.75 x 1.7
|
6.3~10.5V
|
|
300/209C1151343
|
3.4 x 1.4
|
12V, 0.5A
|
|
300/209C1151344
|
3.8 x 1.4
|
12V, 0.5A
|
|
|
|
P/n
|
Size
|
Rating
|
|
300/209C1151453
|
5.5 x 2.1
|
12V, 0.5A
|
|
300/209C1151454
|
5.5 x 2.5
|
12V, 1A
|
|
300/209C1151455
|
4.0 x 1.7
|
3.15~6.3V
|
|
300/209C1151456
|
4.75 x 1.7
|
6.3~10.5V
|
|
300/209C1151457
|
3.4 x 1.4
|
12V, 0.5A
|
|
300/209C1151458
|
3.8 x 1.4
|
12V, 0.5A
|
|
|
|
 |
 |
 |
 |
|
Jack, panel mnt
|
Jack, panel mnt
|
|
|
|
|
|
|
|
|
|
|
